LPWA ProductsSelection Guide

Communication Technology by Features
By Specifications
Product Lineup

Communication Technology by Features

	Wireless Communication Technology	Mobile Communication Technology

Mobility	Range of communication coverage using same gateway	Allows handover (roaming)	Target is fixed device	Suitable for voice calls because of its high communication speed
Signal Interference	Sensitive	Robustness	Robustness	Robustness
Transfer Rate	Slow	Somewhat fast	Slow	Fast
Cost	Low	Low	Low	High
Power Consumption	Low	Low	Low	High
Frequency Band	Unlicensed band	Licensed band	Licensed band	Licensed band
Modular Certification	No testing required	Product certification required	Product certification required	Product certification required
IP	Cannot be used	Can be used	Can be used	Can be used
Communication Range	10 km or more			5 km
Data Transmission Rate	<10 Kb/s	1 Mb/s	<150 Kb/s	5Mb/s
Transmission Power	+20 dBm*	+23 dBm	+23 dBm	+23 dBm
Battery Life	10 years or longer			1 day (when using mobile phone)
Module	Type ABZ CMWX1ZZABZ Type 1SJ LBAA0QB1SJ Type 2GT LBAA0XV2GT-001	Type 1SC LBAD0XX1SC	Type 1SC LBAD0XX1SC	-

* +20dBm for US only. +14dBm for EU/Asia

By Specifications

LPWA Module	Chipset	Transmission Power	Size	Package	Frequency / Band	Remarks
Type ABZ CMWX1ZZABZ	SX1276 and STM32L	Up to +18.5 dBm	12.5 × 11.6 × 1.76 mm	Metal Case	860-930 MHz	Type ABZ-078 Type ABZ-091 Type ABZ-108
Type 1SJ LBAA0QB1SJ	SX1262 and STM32L	Up to +22 dBm	10.0 × 8.0 × 1.6 mm	Resin Mold	860-930 MHz	Type 1SJ-295 Type 1SJ-296 Type 1SJ-686 Type 1SJ-977
Type 1WL LBEU5ZZ1WL	LR1110 STM32WB MT3333	Please refer to datasheet	17.0 × 17.5 × 2.15 (max.) mm	Metal Case	860-930 MHz	Type 1WL-633 Type 1WL-857
Type 2DT LBAA0XV2DT	LR1110	Please refer to datasheet	9.98 × 8.70 × 1.74 mm	Metal Case	860-930 MHz	Type 2DT-158
Type 2GT LBAA0XV2GT	LR1121	Please refer to datasheet	9.98 × 8.70 × 1.74 (max.) mm	Metal Case	860-930 MHz, 2.4 GHz, 2.1 GHz S-Band	Type 2GT-001 Type 2GT-002
Type 1SC LBAD0XX1SC	Altair ALT1250	+23 dBm max.	11.1 × 11.4 × 1.5 mm (max.)	Resin Mold	Low Bands 5, 8, 12, 13, 14 (CAT M1 Only), 17, 18, 19, 20, 26, 28 Mid Bands 1, 2, 3, 4, 25	Type 1SC Type 1SC-SFS Type 1SC-NTN Type 1SC-iSIM
Type 2GD LBAD0ZZ2GD	Altair ALT1350	+23 dBm max.	10.8 × 11.0 × 1.35 mm (max.)	Resin Mold	Low Bands 5, 8, 12, 13, 14 (CAT M1 Only), 17, 18, 19, 20, 26, 28 Mid Bands 1, 2, 3, 4, 25	Type 2GD

Product Lineup

Type 1SC LBAD0XX1SC

Resin Mold

Type 1SC-SFS LBAD0XX1SC

Resin Mold

Type 1SC-NTN LBAD0XX1SC

Resin Mold

Type 1SC-iSIM LBAD0XX1SC

Resin Mold

Type 2GD LBAD0ZZ2GD

Resin Mold

Type ABZ-078 Open MCU CMWX1ZZABZ

Metal Case

Type ABZ-108 Modem CMWX1ZZABZ

Metal Case

Type 1SJ-295 Open MCU LBAA0QB1SJ

Resin Mold

Type 1SJ-296 FUOTA Modem LBAA0QB1SJ

Resin Mold

Type 1SJ-686 World wide Modem LBAA0QB1SJ

Resin Mold

Type 1SJ-977 Modem with LW1.0.4 LBAA0QB1SJ

Resin Mold

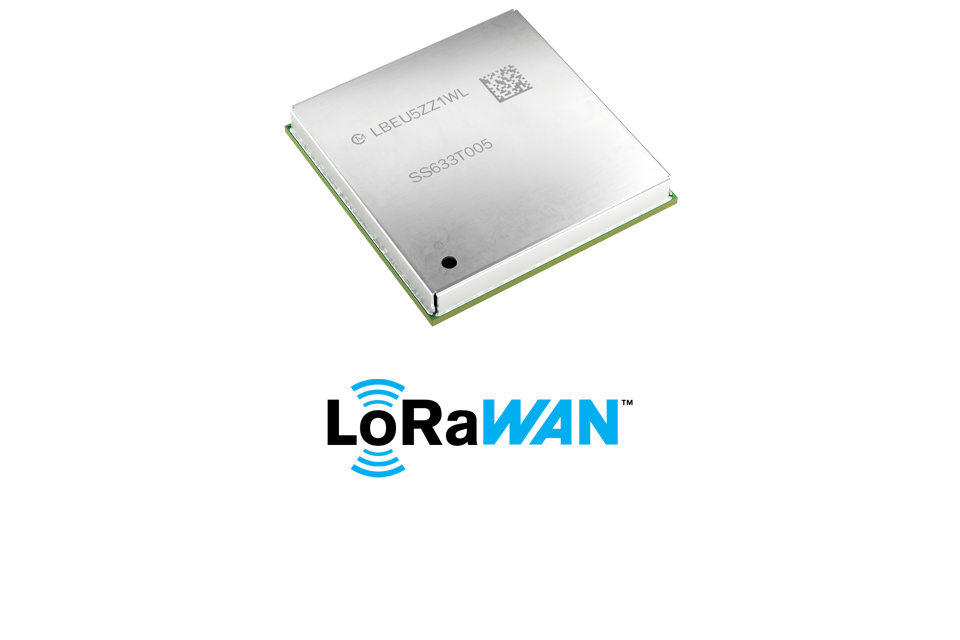

Type 1WL-633 HW & Cloud based Geolocation LBEU5ZZ1WL

Metal Case

Type 1WL-857 Cloud based Geolocation LBEU5ZZ1WL

Metal Case

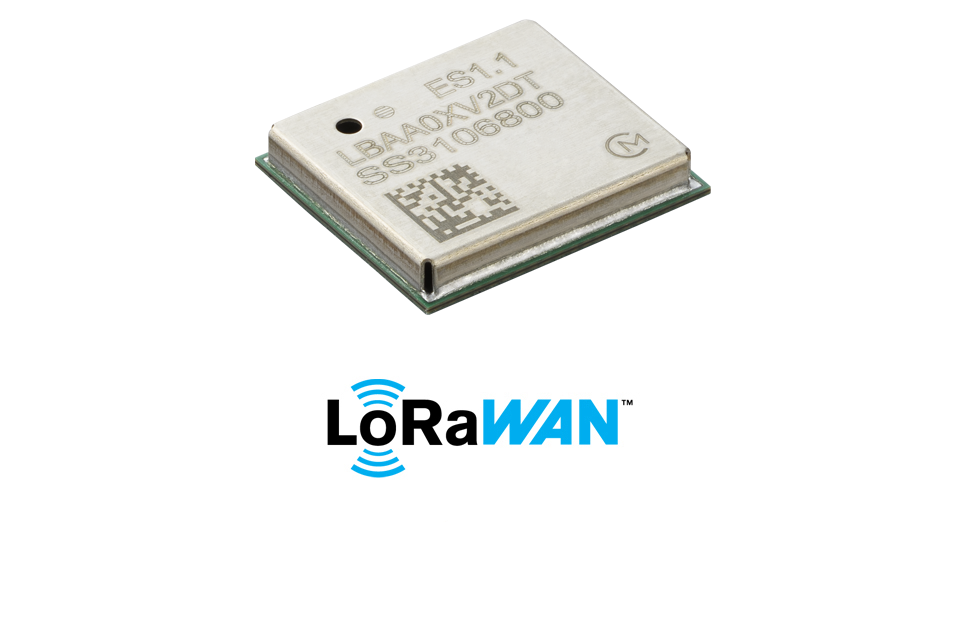

Type 2DT-158 LoRa Edge™ solution module LBAA0XV2DT

Metal Case

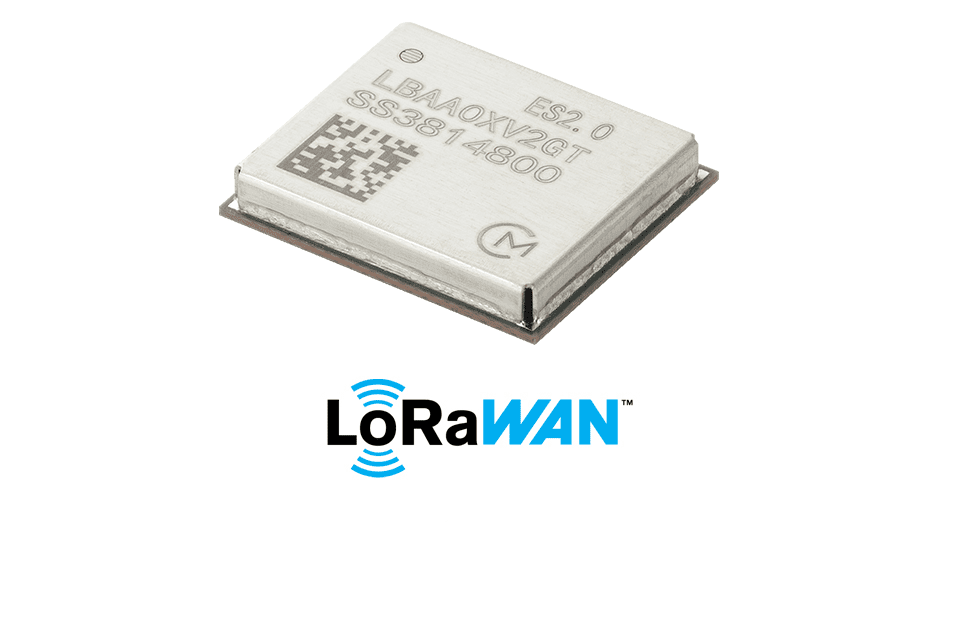

Type 2GT-001 Multi-Band LoRa® connectivity module LBAA0XV2GT

Metal Case

Type 2GT-002 Multi-Band Modem-E module LBAA0XV2GT

Metal Case
