时钟元件 (晶体谐振器/陶瓷谐振器)按应用 产品使用示例

Contents一览

• ※通过点击移动至各项。

• AP Router
• BT-Headphone
• BT-Speaker
• BT-Tracker
• E-cigarette
• ESL (Electronic Shelf Label)
• Industry Automation
• Healthcare
• HEMS
• M2M
• OTT (Over The Top)
• Payment Terminal
• Security Camera
• Smart Door Lock
• Smart Lighting
• Smart Meter
• Smart Phone
• Smart Speaker
• SSD
• Stylus Pen
• TV
• VR AR
• Wearable Device
• White Goods

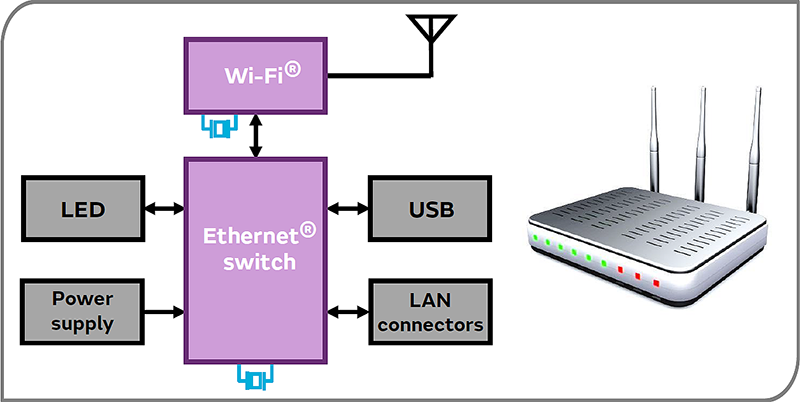

AP Router / Wi-Fi^®AP 路由器

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

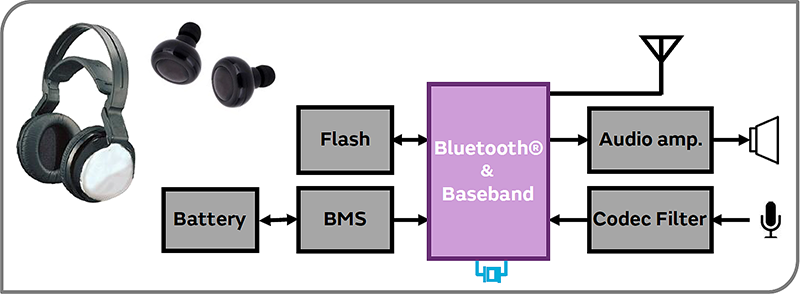

Bluetooth^®Headphone / Bluetooth^®耳机

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-S series	24.000 / 26.000 / 32.000 /40.000 MHz	Bluetooth®

Bluetooth^®Speaker / Bluetooth^®扬声器

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-S series	24.000 / 26.000 / 32.000 /40.000 MHz	Bluetooth®

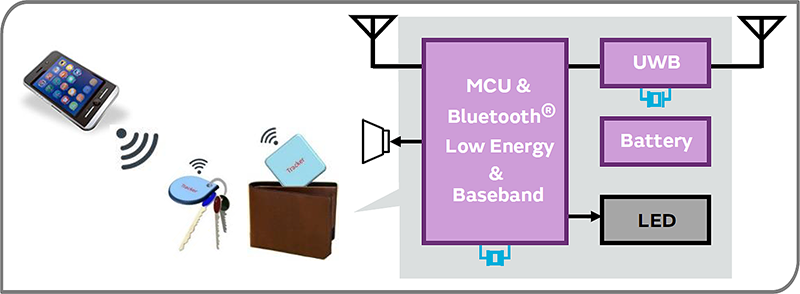

Bluetooth^®Tracker / Bluetooth^®追踪

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy
		XRCGB-F-S series	38.400 MHz	UWB

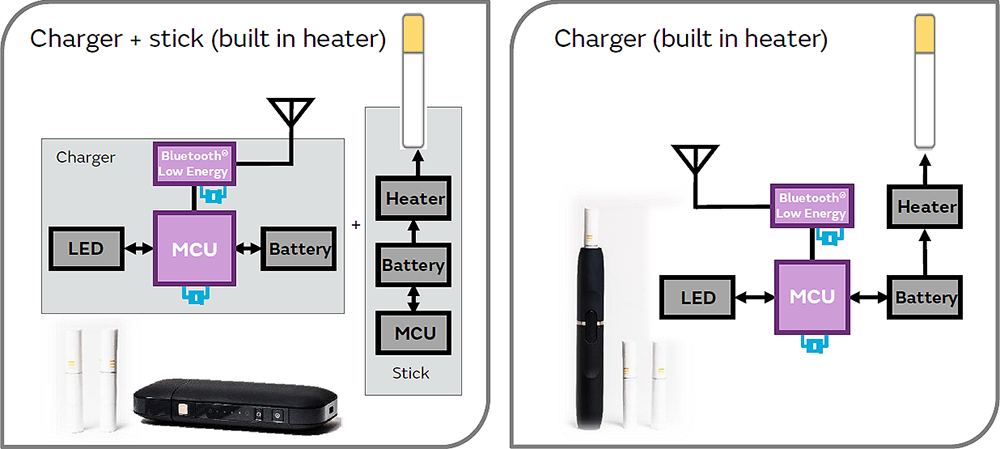

E-cigarette (heater type) / 电子烟 (加热式)

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-L series XRCGB-F-M series	16.000 to 48.000 MHz	MCU
		XRCGB-F-P series	16.000 / 32.000 MHz	Bluetooth® Low Energy

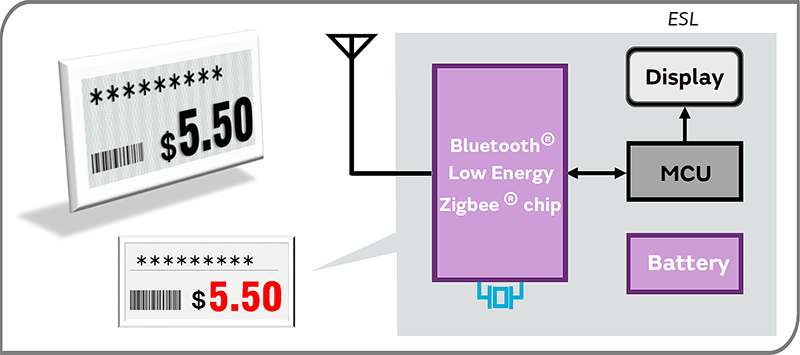

ESL (Electronic Shelf Label) / 电子货架标签

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy, Zigbee®

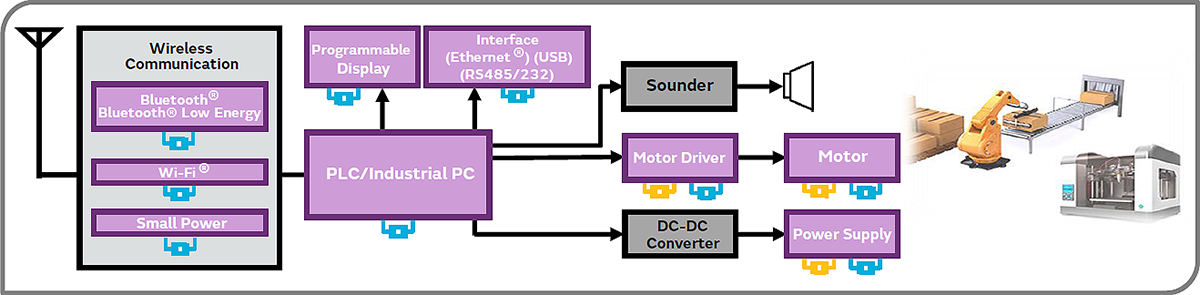

Industry Automation / 工业设备

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Power supply, Motor
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-M series	16.000 to 50.000 MHz	Ethernet®, USB, PLC, Display, Motor driver, Motor, Power Supply
		XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy
		XRCGB-F-S series	24.000 / 26.000 / 32.000 MHz	Bluetooth®, LPWA
		XRCGB-F-S series	40.000 MHz	Wi-Fi®

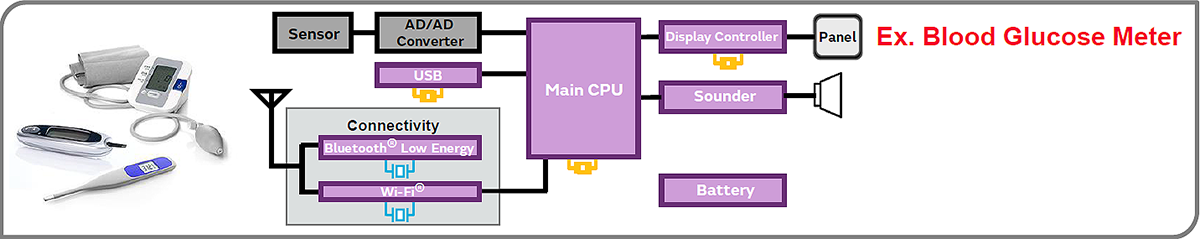

Healthcare / 保健

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Main CPU, USB, Display Controller
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®, Bluetooth® Low Energy

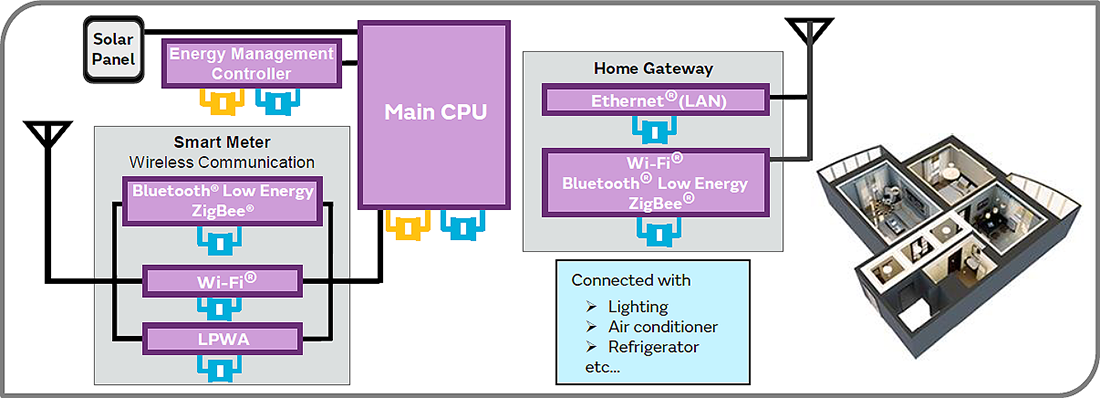

HEMS

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Main CPU
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy, ZigBee®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®, LPWA

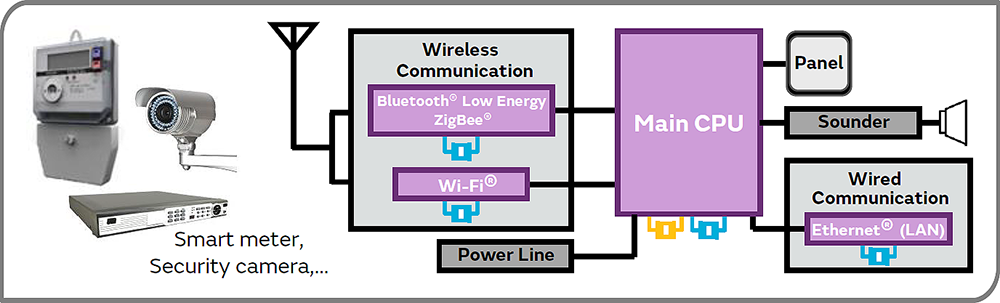

M2M

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Main CPU
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy, ZigBee®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

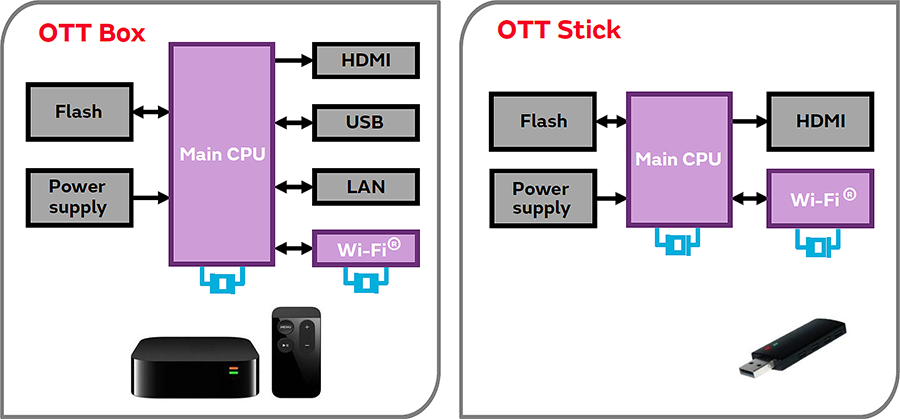

OTT (Over The Top)

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-P series	24.000 MHz	Main CPU
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

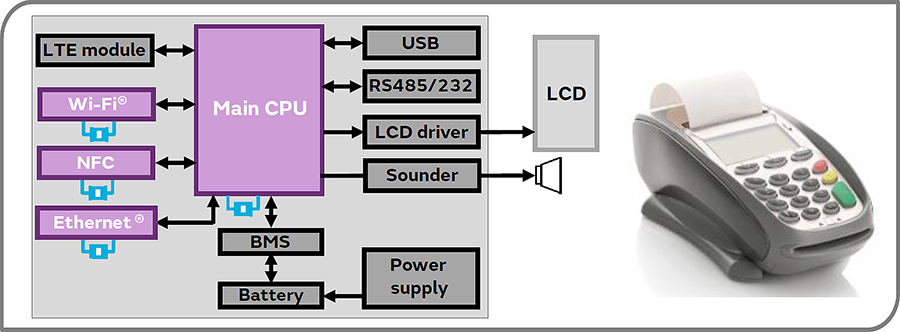

Payment Terminal / 付款终端

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-P series	24.000 MHz	Main CPU
		XRCGB-F-M series	25.000 MHz	Ethernet®
			27.120 MHz	NFC
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

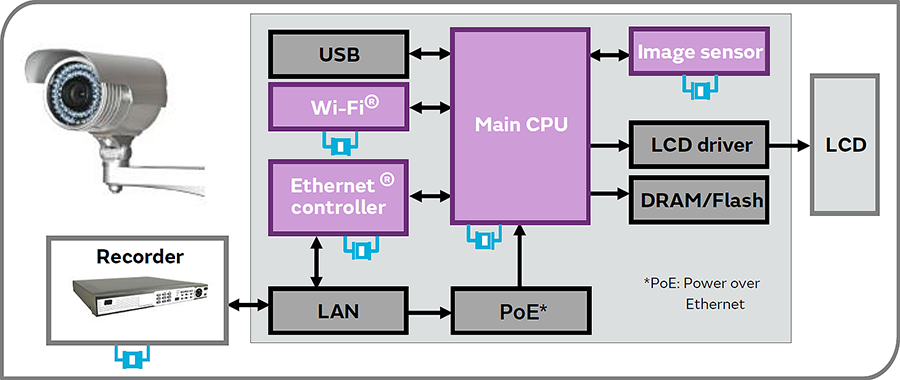

Security Camera / 安防摄像头

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-P series	24.000 / 27.000 MHz	Main CPU, Image Sensor
		XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

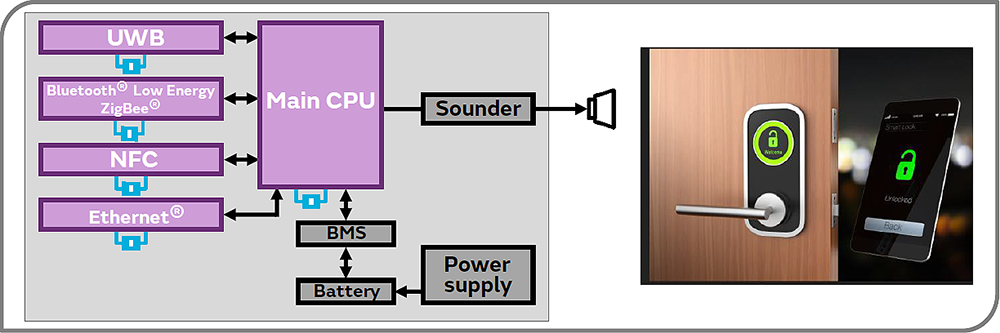

Smart Door Lock / 智能门锁

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Main CPU, Bluetooth® Low Energy, ZigBee®
		XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-S series	38.400 MHz	UWB

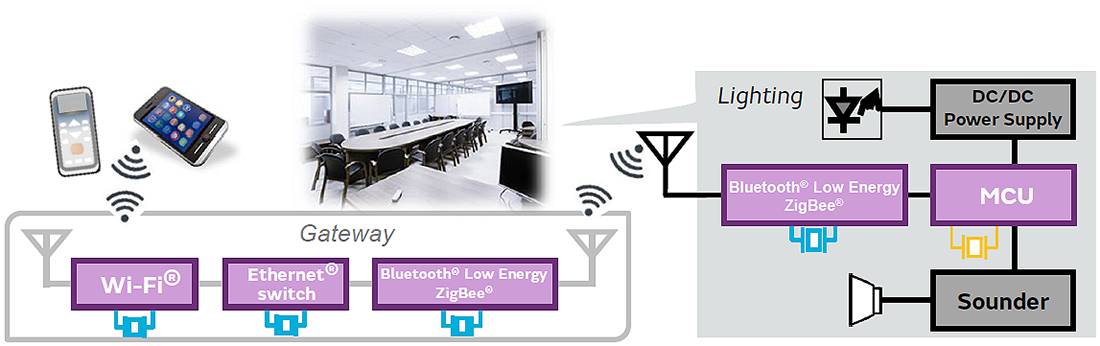

Smart Lighting / 智能照明

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 MHz	Main CPU
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 / 12.000 / 16.000 / 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy, ZigBee®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

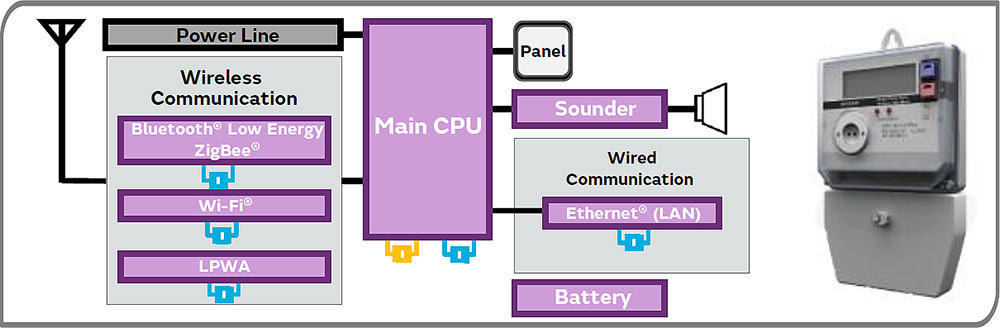

Smart Meter / 智能电表

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Main CPU
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-M series	25.000 MHz	Ethernet®
		XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy, ZigBee®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®, LPWA

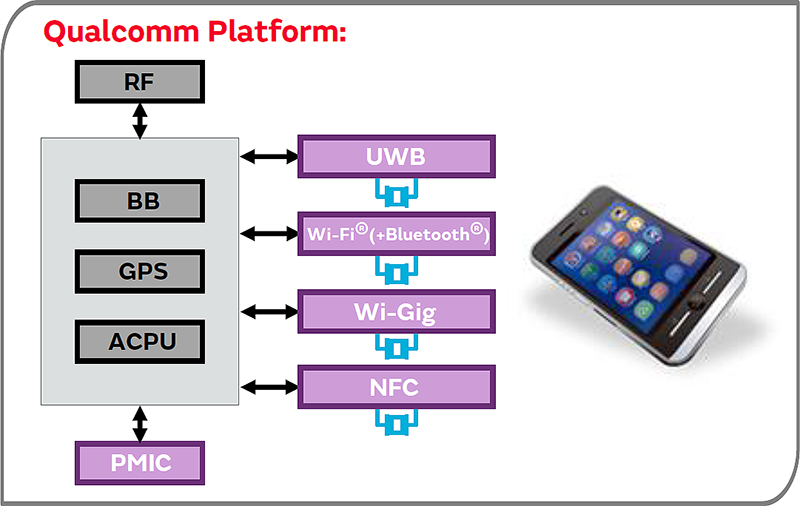

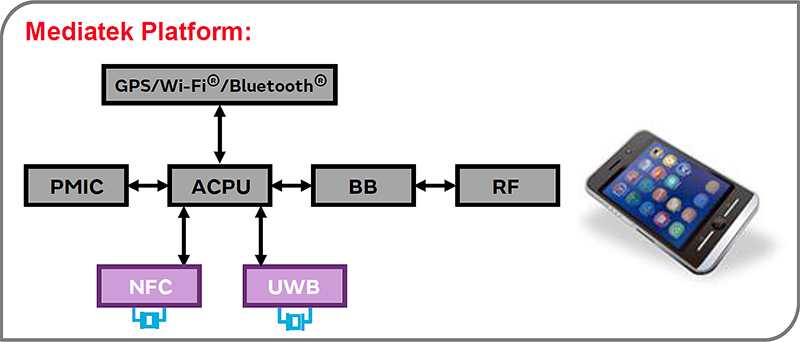

Smart Phone / 智能手机

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-M series	27.120 MHz	NFC
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®
			38.400 MHz	Wi-Gig, UWB

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-M series	27.120 MHz	NFC
		XRCGB-F-S series	38.400 MHz	UWB

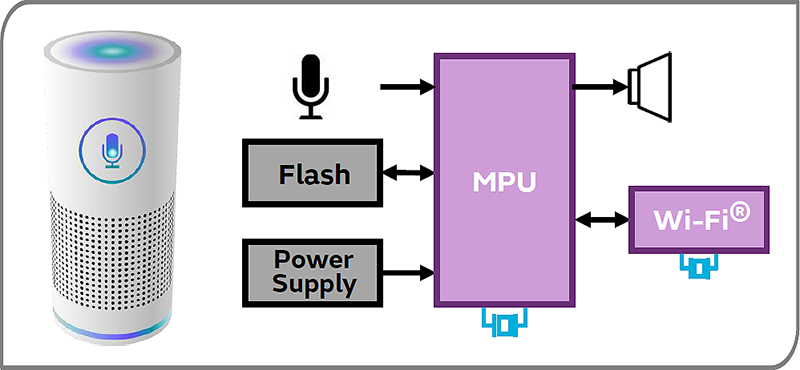

Smart Speaker / 智能扬声器

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-M series	16.000 to 50.000 MHz	MPU
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

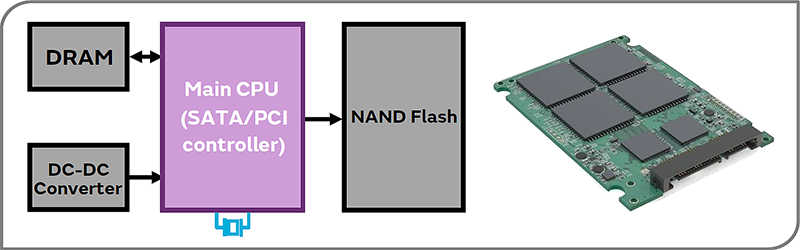

SSD

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-L series XRCGB-F-M series	25.000 to 50.000 MHz	Main CPU

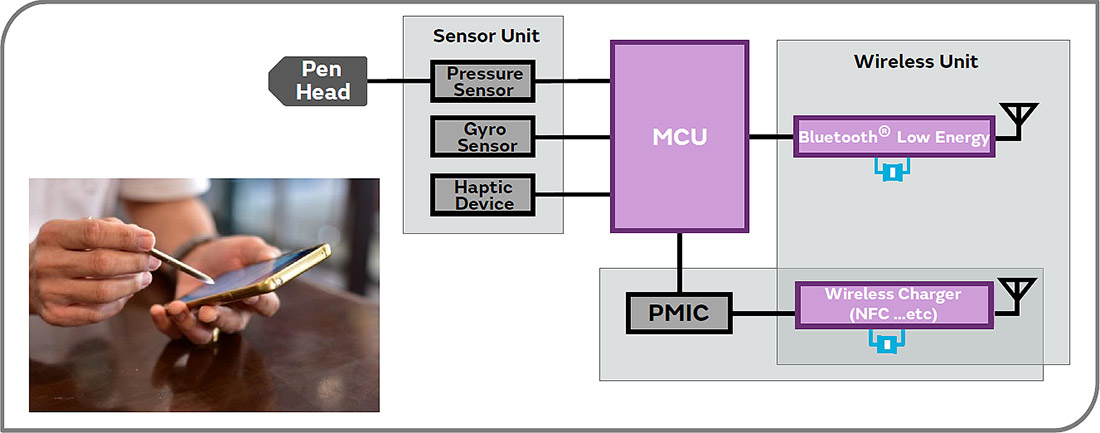

Stylus Pen

Device	Size(mm)	Series / Spec.		Function
Crystal Units	2.0 × 1.6	XRCGB-F-M series	27.12 MHz	NFC (Wireless Charger)
		XRCGB-F-P series	32 MHz	Bluetooth® Low Energy

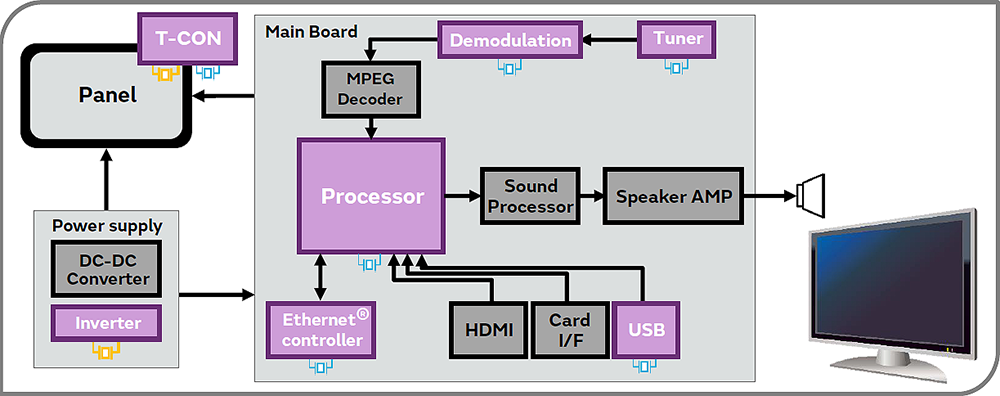

TV / 电视机

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Inverter, T-CON
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-P series	16.000/ 24.000 / 27.000 MHz	Processor, Tuner, etc.
		XRCGB-F-M series	25.000 MHz	Ethernet®

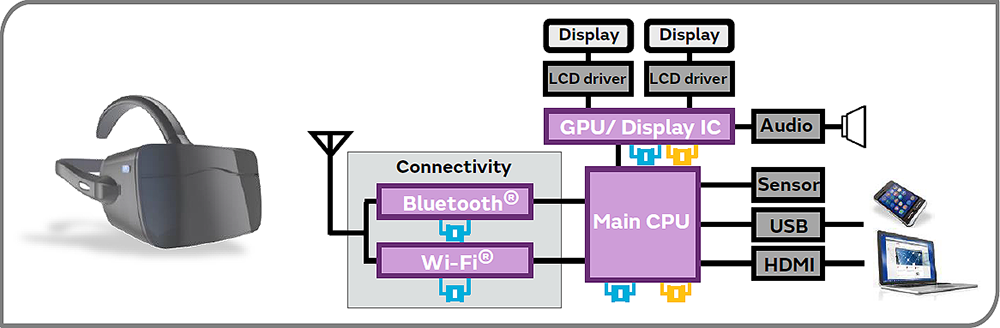

VR AR

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	Main CPU, Display IC
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-P series	16.000 to 32.000 MHz	Main CPU, Display IC
		XRCGB-F-S series	24.000 / 26.000 / 32.000 / 37.400 / 38.400 / 40.000 MHz	Wi-Fi®, Bluetooth®

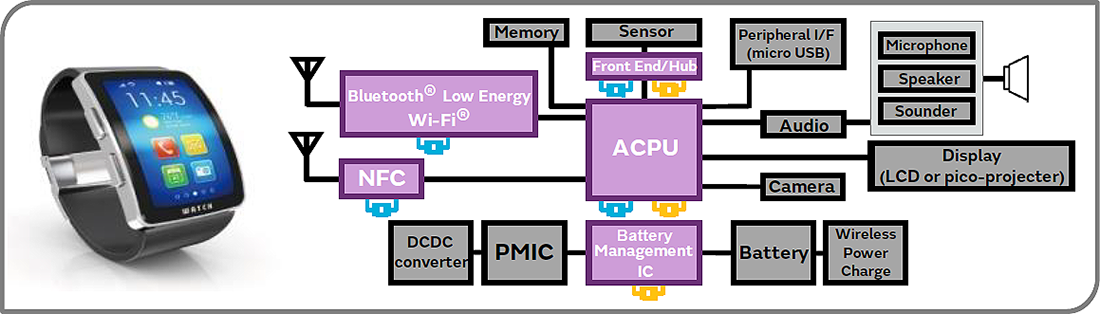

Wearable Device / 可穿戴设备

Device	Size(mm)	Series / Spec.		Function
Ceramic Resonators	4.5 × 2.0	CSTCR-G series	4.000 to 7.999 MHz	ACPU, Front End/Hub, Battery Management
	3.2 × 1.3	CSTNE-G series CSTNE-V series	8.000 to 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-M series	27.120 MHz	NFC
		XRCGB-F-P series	16.000 / 24.000 / 32.000 MHz	Bluetooth® Low Energy, ACPU
		XRCGB-F-S series	24.000 / 26.000 / 32.000 MHz	Bluetooth®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®

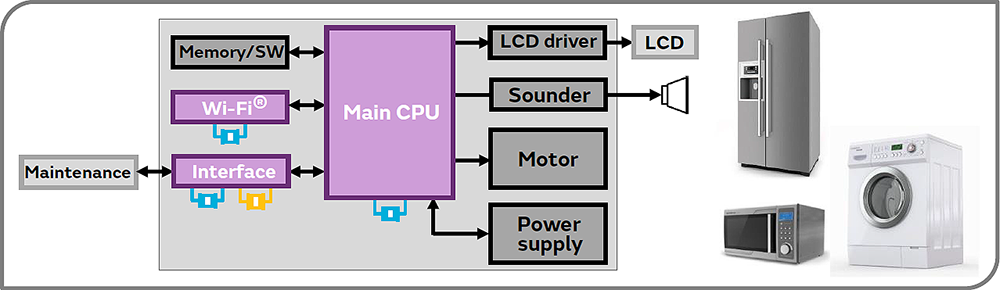

White Goods / 白色家电

Device	Size(mm)	Series / Spec.		Function
CeramicResonators	4.5 × 2.0	CSTCR-G series	4.000 MHz	Interface / CAN-Bus
	3.2 × 1.3	CSTNE-G series	8.000 / 12.000 MHz
		CSTNE-V series	16.000 / 20.000 MHz
Crystal Units	2.0 × 1.6	XRCGB-F-P series	24.000 MHz	Main CPU
		XRCGB-F-M series	25.000 MHz	Interface / Ethernet®
		XRCGB-F-S series	37.400 / 38.400 / 40.000 MHz	Wi-Fi®
